Glasses Frame modeling

on

 Revolutionize Your Workflow: From Scan Data to Editable CAD in Just 8 Hours!

In today's fast-paced product development world, speed and precision are everything. Are you looking for a way to quickly and accurately convert your physical parts into fully editable CAD models? Look no further! We're excited to showcase a recent project that perfectly illustrates our advanced 3D modeling capabilities: the reverse engineering of a goggle frame.


The Challenge: Creating a Digital Twin

Our client needed a precise, editable CAD model of an existing goggle frame for mold development. The goal was to capture the complex curves and ergonomic design of the physical object with perfect accuracy, creating a digital asset ready for manufacturing.


Used Solution: Advanced 3D Scanning and Reverse Engineering

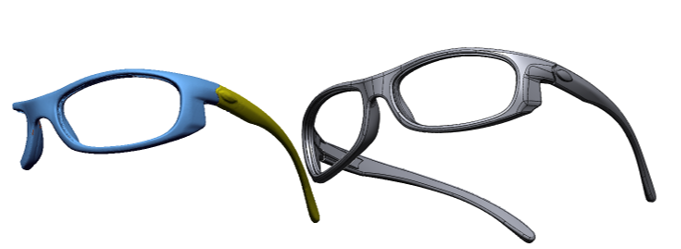

Using a high-precision optical scanner, we captured the detailed geometry of the goggle frame, creating a dense point cloud of its surface. This raw scan data, while accurate, isn't immediately usable for CAD/CAM applications.

This is where our expertise with Geomagic Design X comes in. We processed the scan data, transforming it into a clean, intelligent 3D model. The final output was a parametric model, fully editable in popular CAD software like Autodesk Inventor. This means our client can now easily modify the design, make adjustments for the mold, and seamlessly integrate it into their production workflow.


The Result: Precision and Efficiency



The best part? The entire modeling process, from initial scan to a fully functional CAD file, was completed in approximately 8 hours. This rapid turnaround time significantly shortens the development cycle, saving our clients valuable time and resources.


Project Summary:

  1. Objective: Goggle Frame CAD Modeling from Scan Data
  2. Application: Mold Development
  3. Tools: Optical Scanner, Geomagic Design X, Autodesk Inventor
  4. Total Modeling Time: About 8 Hours

If you need to bring a physical product into the digital world for modification, analysis, or manufacturing, our 3D scanning and modeling services are the perfect solution.


Contact us today to learn how we can help with your next project!
