In the world of advanced engineering, topology optimization is a game-changer. It allows us to create parts that are incredibly strong yet remarkably lightweight. The challenge? These organic, complex shapes are notoriously difficult to convert into manufacturable CAD models using traditional methods.
But what if you could model these intricate designs accurately and in a fraction of the time? Our latest project demonstrates exactly how we do it.
The Challenge: From Organic Scan to Manufacturable Model
We were tasked with creating a production-ready CAD model from a scan of a topology-optimized mechanical part. The final model needed to be suitable for both casting and CNC machining, which demanded absolute precision for both its organic surfaces and its functional geometric features.
Used Solution: Hybrid Modeling with Geomagic Design X
To tackle this, we employed a powerful hybrid modeling technique.
Data Capture: First, we used a high-precision Arm scanner to capture the intricate details of the physical part.

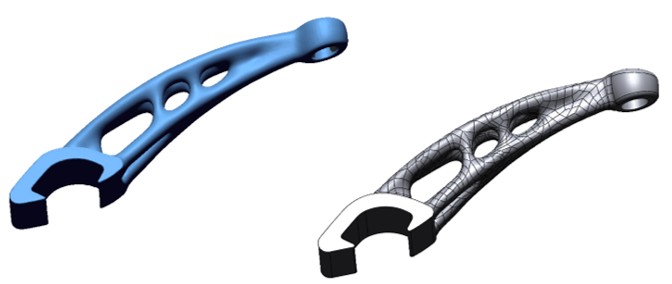

Intelligent Modeling: The real magic happens in Geomagic Design X. For the complex, organic body of the part, we utilized the powerful polygon fitting feature. This tool allows us to accurately wrap surfaces directly onto the scan mesh, perfectly preserving the optimized shape without tedious manual remodeling.
Precision Features: For the mechanical connection points, we used standard parametric modeling techniques to ensure perfect geometric accuracy for manufacturing.
By combining these two approaches—polygon fitting for the organic surfaces and traditional modeling for the prismatic features—we created a complete, highly accurate, and fully editable CAD model ready for production.
The Result: Speed and Precision Combined
This advanced hybrid workflow allowed us to deliver a complete, manufacturing-ready model in an astonishingly short amount of time.
Summary: CAD modeling of a topology-optimized part from scan data.
Purpose: Create a model for Casting and CNC manufacturing.
Total Modeling Time: About 4 hours.
Don't let complex geometry slow down your innovation. Our advanced reverse engineering services can turn your most challenging parts into usable digital assets with unmatched speed and accuracy.
Ready to bring your optimized designs to life? Contact us today to discuss your project!
