Reverse Engineering a Car for CG Advertisement( Image creation)
Creating high-quality computer graphics (CG) for new car advertisements is a complex process. The goal is to produce a stunning, photorealistic image that captures the car's aesthetic details perfectly. This case study details a reverse engineering project to achieve just that, transforming a physical car into a digital 3D model for a promotional brochure.
Project Overview

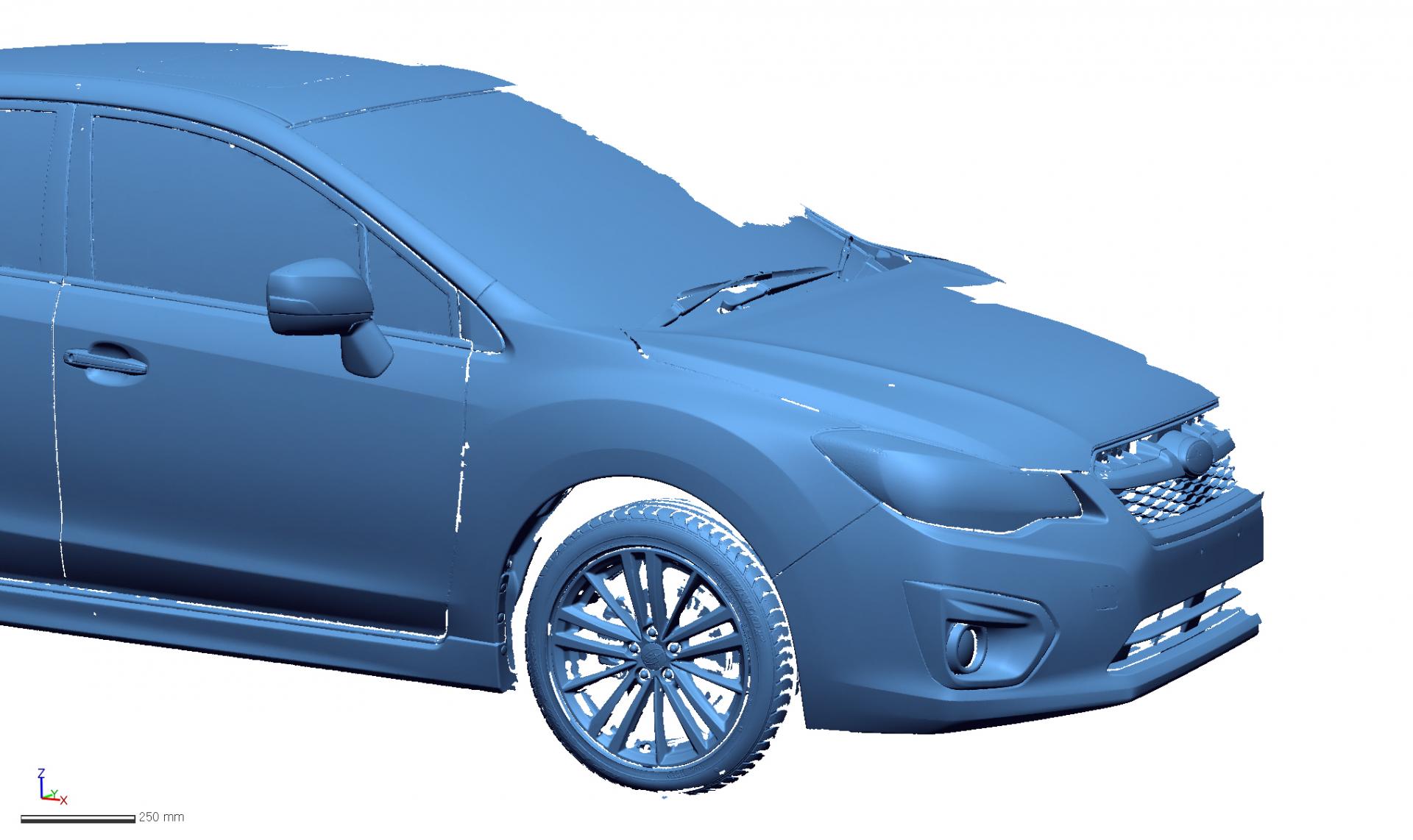

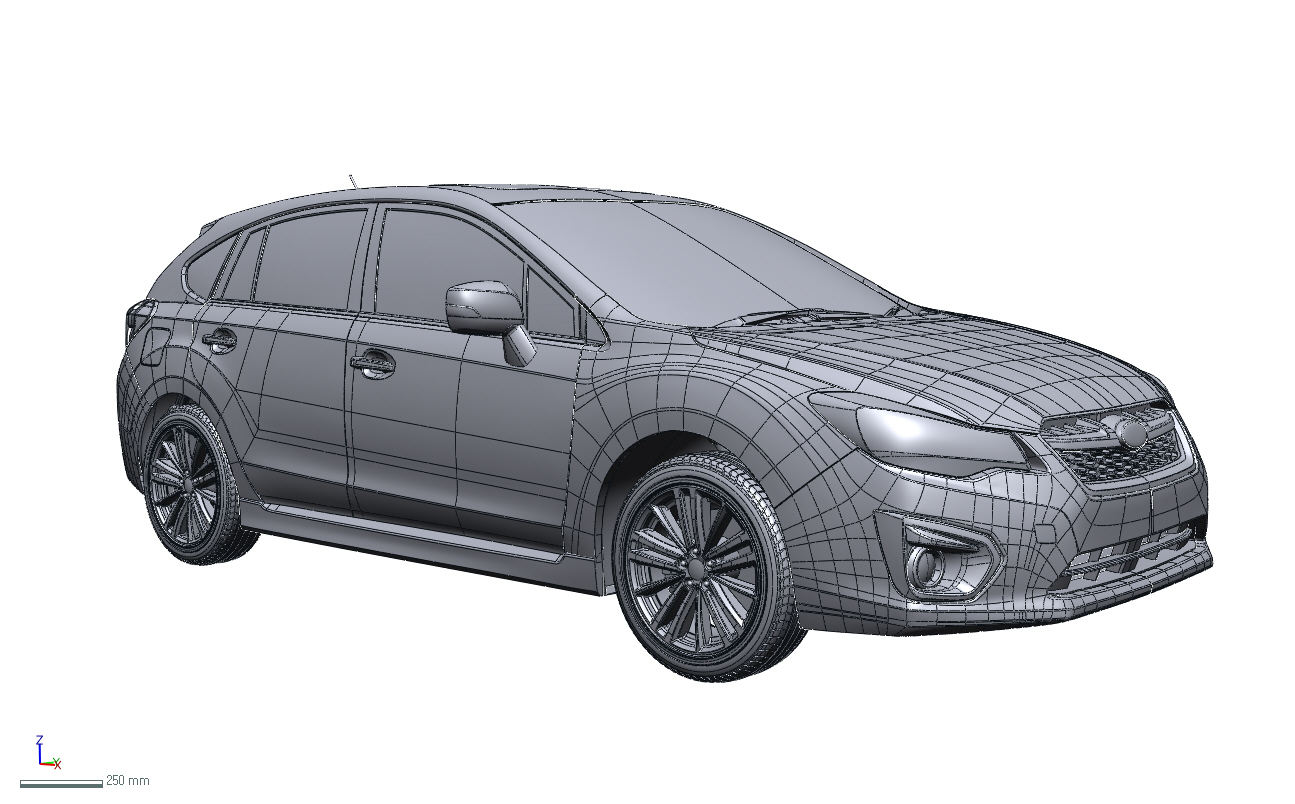

The main purpose of this project was to generate a CG image for an advertisement. The workflow involved a few key steps: scanning the car's exterior, ensuring high-quality surfacing, and splitting the data into isolated parts to define different materials. The two images below the bullet points illustrate the successful outcome: a photo of the real car and its final 3D model with a visible wireframe.
The Reverse Engineering Process
The project utilized Geomagic Design X, a powerful reverse engineering software, to convert the 3D scan data into a usable 3D model. The process wasn't a one-size-fits-all approach; it involved two distinct modeling methods based on the nature of the car's surfaces.
Polygon Fitting for Freeform Surfaces: For the smooth, freeform curves that make up most of the car's body, the polygon fitting method was used. This approach is ideal for complex, organic shapes where the scan data is clean and well-defined. It essentially "fits" a new mesh or NURBS surface onto the scanned polygon data, creating a high-fidelity digital representation of the car's elegant curves.
Feature Modeling for Prismatic and Missing Parts: For sections with simpler, prismatic geometry (like the window frames or door handles) or for any areas where the scan data was incomplete or "missing," the feature modeling method was applied. This approach involves manually creating geometric features (like extrusions, cuts, and fillets) based on the scan data's reference. This allows for precise control and is essential for recreating sharp edges and filling in any gaps to produce a complete and accurate model.

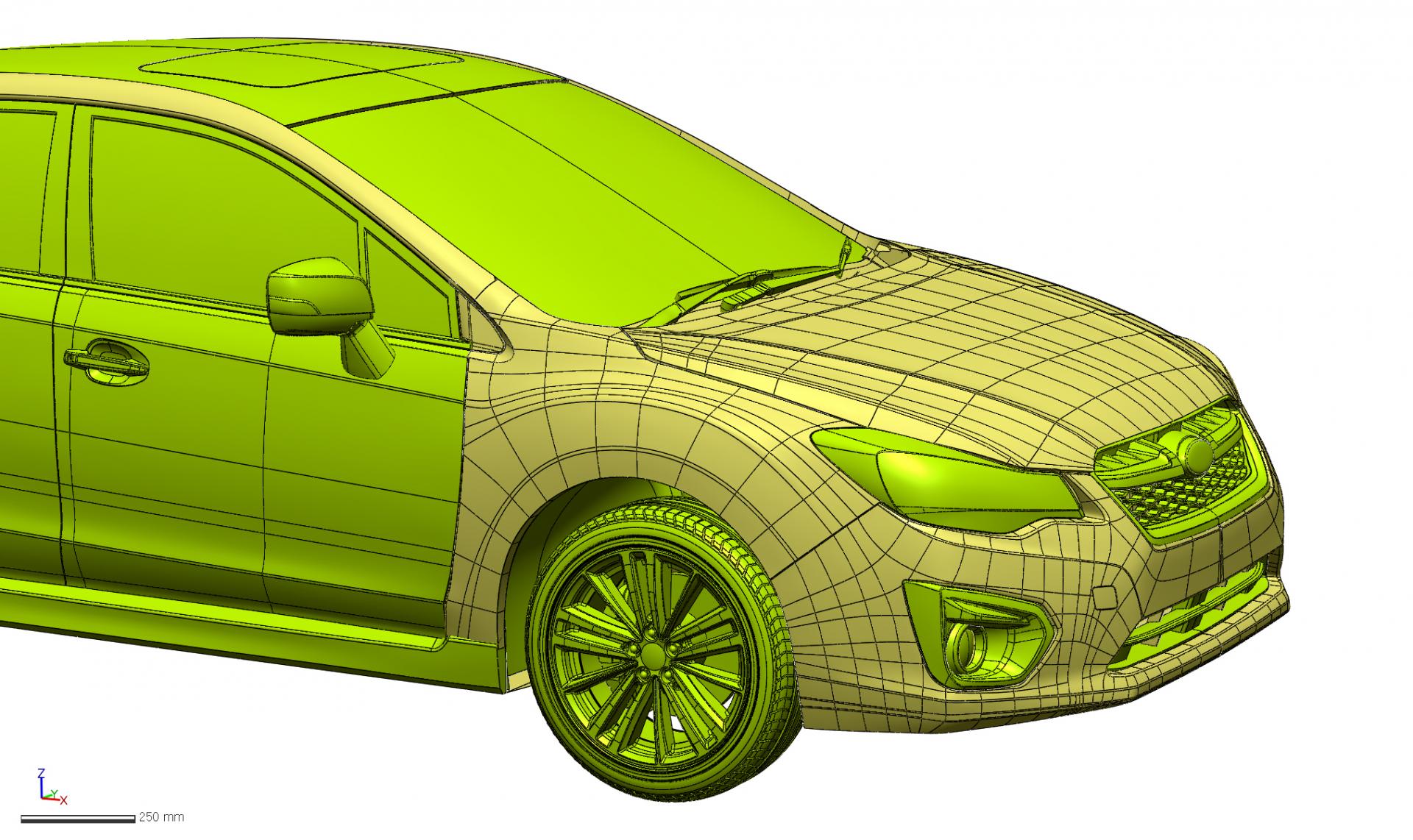

[Green : Feature modeing, Yellow : Polygon fitting ]
By combining these two powerful techniques, the reverse engineering team was able to create a complete and highly accurate 3D model of the vehicle. This model serves as the foundation for high-quality CG rendering, ensuring that the final promotional images are both beautiful and true to the car's design.
